Product Introduction:

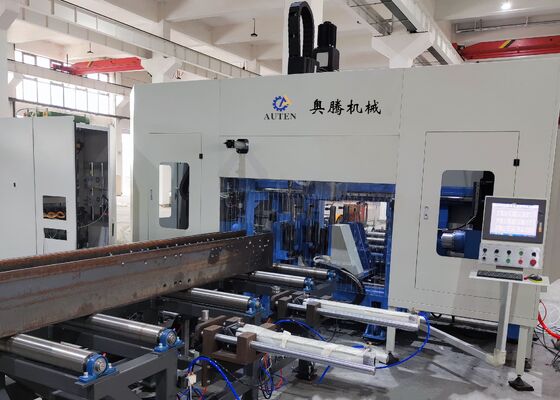

The CNC H-Beam Drilling Machine is purpose-built for high-precision drilling, tapping, marking, and scribing of H-beams, channel sections, angle steel, and other structural steel components. It is widely applied in the fabrication of steel structures for commercial buildings, parking structures, transmission towers, lattice towers, bridges, and various heavy-duty steel construction projects.

1. A specialized high-performance CNC machining solution developed specifically for the structural steel fabrication industry.
2. Capable of simultaneously drilling three sides of H-beams and channel sections, delivering exceptional machining accuracy, consistent processing quality, and high production productivity.
3. Equipped with seven CNC-controlled axes, enabling fully automated material feeding, positioning, and machining operations.
4. Fully compatible with AutoCAD and DSTV file formats, allowing automatic interpretation of engineering drawings and direct generation of machining programs.

Product parameters:

Product Features:

1. The material handling system is equipped with a CNC-controlled clamping carriage powered by high-performance servo motors, enabling fast and stable workpiece transfer while ensuring outstanding positioning precision and repeatability throughout the complete machining cycle.

2. Three high-speed BT40 precision spindle units are configured to simultaneously process the three faces of H-beam sections. With support for carbide drilling, through-spindle coolant supply, and spindle speeds reaching up to 3,000 rpm, the system provides excellent drilling efficiency, superior hole quality, and effective chip removal through the integrated chain-type chip conveyor system.

3. The machine incorporates an advanced Minimum Quantity Lubrication (MQL) cooling system with both internal and external coolant supply capabilities. Each spindle is equipped with an independent external coolant nozzle and internal coolant passage, allowing flexible selection among internal cooling, external cooling, or combined cooling modes according to different tooling conditions and machining requirements.

4. An optional Automatic Tool Changer (ATC) system can be installed to achieve fully automated tool replacement without manual operation. This configuration effectively reduces tool changeover time, decreases non-machining intervals, and improves overall production efficiency.

5. The machine can be optionally equipped with a hydraulic CNC rotary disc marking system. Driven by a precision servo motor, the marking disc automatically selects and indexes among 36 characters, providing rapid, accurate, and repeatable component identification for structural steel parts.

6. The integrated automatic scribing and tapping functions eliminate traditional manual marking and drilling preparation processes. The scribing unit precisely generates welding reference lines on both H-beam flanges and webs, while the tapping function directly produces threaded holes on structural components, enhancing machining accuracy, reducing labor requirements, and improving overall manufacturing efficiency.

7. During the complete feeding and machining process, workpiece lifting, side positioning, clamping, locking, and releasing actions are fully controlled by the hydraulic system. This advanced hydraulic workholding solution ensures reliable material fixation, excellent machining stability, and consistent performance during continuous industrial production.

8. The CNC control platform combines an industrial computer with a PLC-based CNC system, utilizing high-quality components from internationally recognized suppliers. The system supports multiple programming methods and allows direct import of machining data generated from AutoCAD, TEKLA Structures, DXF, and DSTV files, simplifying programming operations and enhancing production management efficiency.

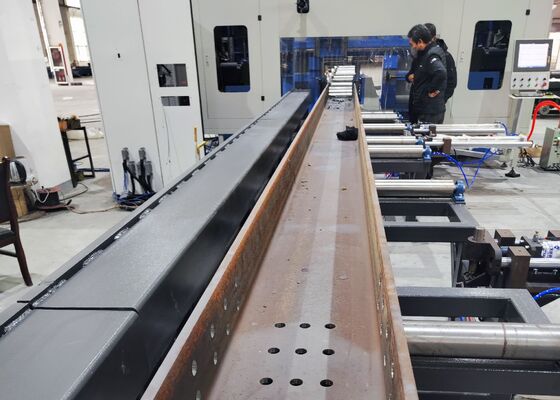

The demonstration workpieces consist of standard H-beam samples with different flange widths and web thicknesses, together with channel steel components of various specifications, providing a comprehensive evaluation of the machine’s machining capabilities. These representative samples effectively demonstrate accurate hole positioning, excellent thread quality, and clear marking performance, enabling customers, engineers, and quality control personnel to assess the equipment’s machining accuracy, production consistency, and operational reliability under actual working conditions.

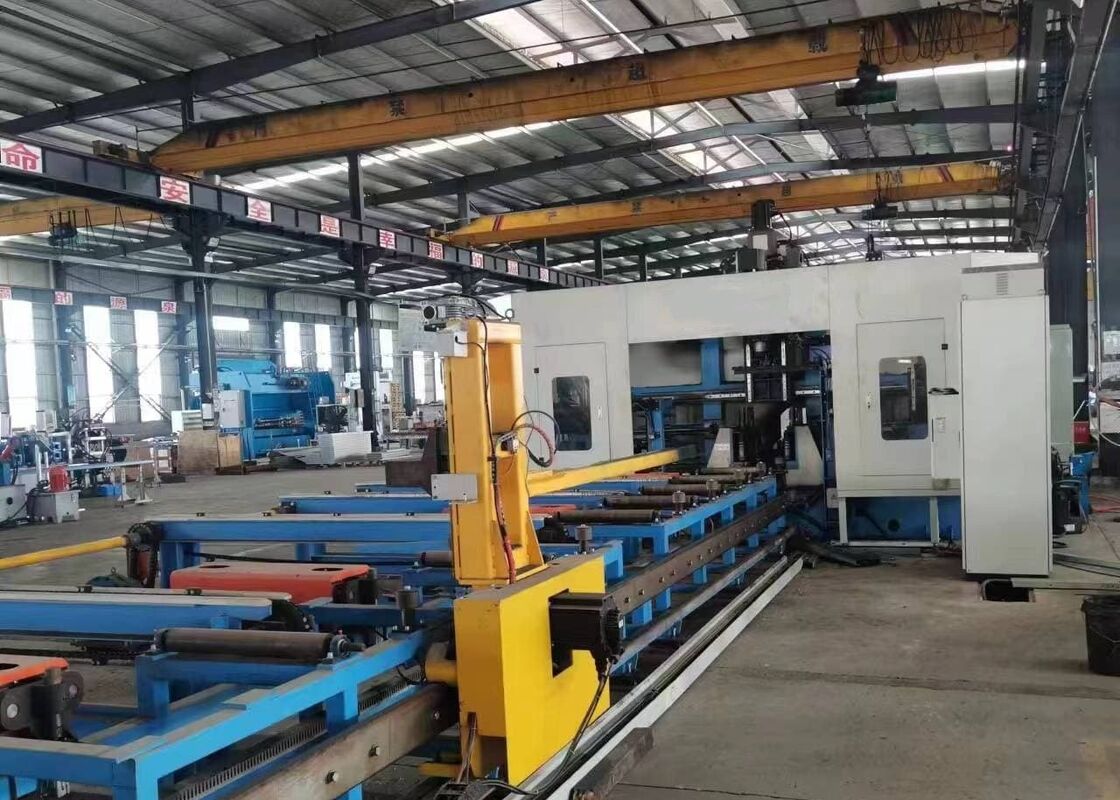

The High-Speed CNC H-Beam Drilling, Marking, and Tapping Machine is widely utilized in structural steel fabrication facilities, bridge construction projects, and other heavy steel manufacturing industries. In steel fabrication plants, the equipment performs high-precision drilling, tapping, marking, and scribing operations on H-beams used for structural frameworks, columns, and support assemblies, providing accurately processed components for efficient installation and reliable structural performance. In bridge engineering applications, the machine delivers precise machining of H-beam members, improving connection accuracy, structural strength, and long-term load-bearing capability. By integrating high processing efficiency, exceptional machining precision, and stable operational performance, the equipment provides an advanced manufacturing solution for modern steel structure fabrication and large-scale infrastructure development.
