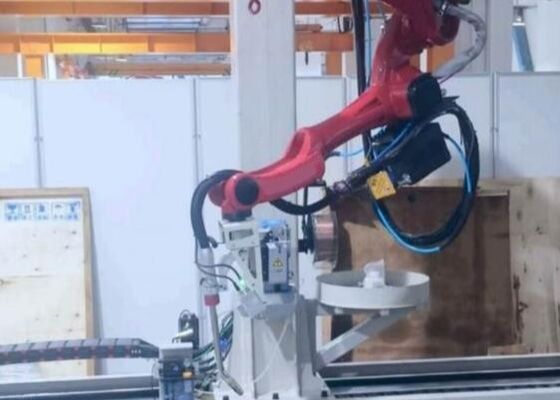

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

Large Image : ±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets/year

Contact Now

Detailed Product Description

Arm Span:	2010mm	Repeatability:	±0.07mm
Load Capacity:	12KG	Near Field Of View:	461×255mm@300mm
Visual Accuracy:	≤0.5mm	Degrees Of Freedom:	7/8/9 Axis
Light Resistance:	180000Lux	Power Supply:	Three-phase Five-wire System, 3×380V±10%/50HZ

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

Product Parameters:

Category	Content	Main Technical Parameters					Remark
Robot performance	Arm span	2010mm					—
	Repeatability	±0.07mm					—
	Load capacity	12kg					—
Visual performance	Near field of view	461×255mm@300mm					—
	Far field of view	1150×660mm@800mm					—
	Z-axis single-point repeatability	0.015mm @300mm0.1mm @800mm					—
	Visual accuracy	≤0.5mm					—
	Full frame acquisition time	0.2-0.8s(Full frame rate Max:6FPS)					—
	Light resistance	180000Lux					—
Overall parameters	Power supply	Three-phase five-wire system 3×380v±10%/50HZ					—
	Degrees of freedom	7-axis		8-axis	9-axis		—
	Number of robots configured	single unit	single unit			single unit	Depends on the design
	Total power consumption	34kw	37kw			55kw	—
	Floor area	(4m + track length) × (3 + rail spacing) × 3.5m					—

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

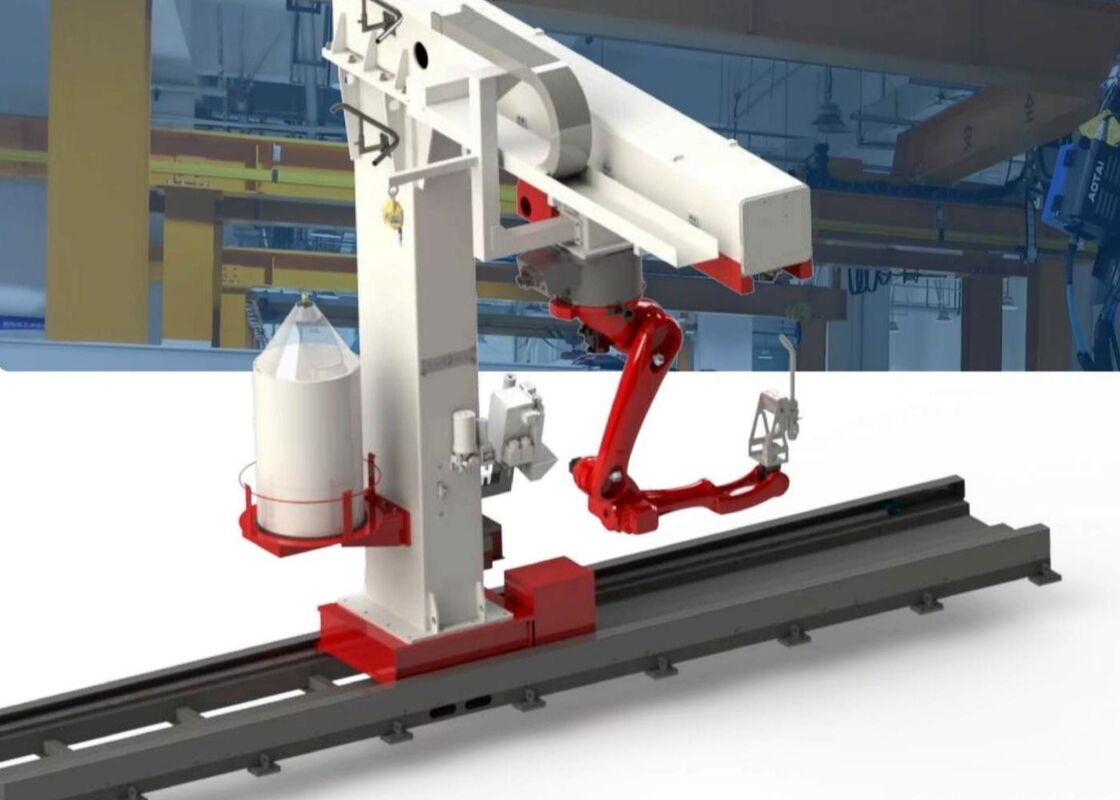

This robot features an inverted track, employing suspension or inverted installation for precise position control and expanded working range. It is suitable for workpieces with a width ≤3M and a height ≤500MM, such as bridge slabs.

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

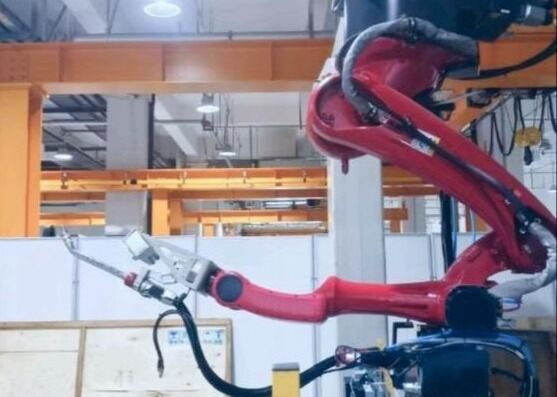

This system can be expanded with Y and Z axes to form a 9-axis cantilever, further increasing the working range. Combined with multiple 3D vision systems, multiple workpieces can be modeled from a single photograph.

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance
