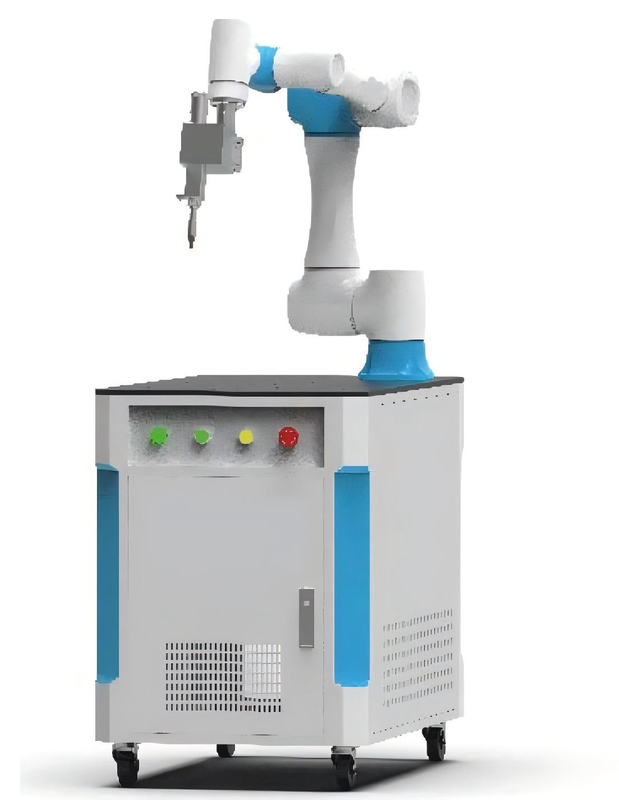

Model QM-X1000 Collaborative Robot Laser Welding Machine 1000W Laser Power
Wire Feeding Method:With wire / Without wire
Wire Diameter: φ0 .8-φ2 .0mm
Weld Seam Width:Adjustable width
Weld Quality: No grinding required
Welding Speed:38times taster than traditional welders
Equipment Features:
Easy to Use:Supports sensitive drag teaching and direct Chinese-language programming, no need to learn professional welding or programming knowledge.Truly zero-basic operation
Flexible Collaboration:Integrated control cabinet-free design reduces system weight by 50%,enabling compact deployment. Equipped with multiple safety features for safer human-robot collaboration.
High Quality & Efficiency:High repeat positioning accuracy ensures fast welding speed and premium quality with aesthetically pleasing seams, eliminating secondary weld processing
Quick changeover:Ideal for small batch, multi-variety part production,enabling rapid production switching.
Equipment Parameters:
| Equipment Model |
QM-X1000 |
QM-X1500 |
QM-X2000 |
QM-X3000 |
QX-P4000 |
| Laser Power |
1000W |
1500W |
2000W |
3000W |
4000W |
| Laser Brand |
BWT,Beijing Reci |
| Laser Type |
Laser Beijing Reci |
| Laser Wave length |
1080±3nm |
| Adjustable Power |
10-100% |
| Cooling Method |
Water cooling |
| Power Supply |
Single-phase AC220V |
Three-phase AC380V |
| Total Power |
≤10KW |
≤12KW |
≤14KW |
≤18KW |
≤25KW |
Equipment application scope:
Widely used in:household appliances,kitchenware,advertising,ventilation ducts,molds,medical devices,sheet metal,construction machinery, pressure vessels,etc.
Widely used for: welding or cutting of materials such as carbon steel,stainless steel,aluminum alloy,galvanized steel,titanium alloy,copper alloy,etc.
