Crawler-Type Composite Welding Trolley With Optional Laser SLAM And Depth Camera

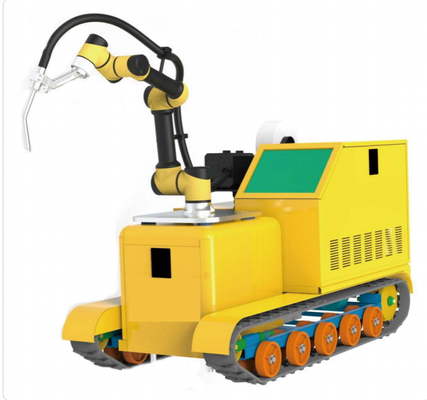

Large Image : Crawler-Type Composite Welding Trolley With Optional Laser SLAM And Depth Camera

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	500 sets/year

Contact Now

Detailed Product Description

Crawler-Type Composite Welding Trolley With Optional Laser SLAM And Depth Camera

Equipment Features:

It adopts an intelligent mobile hybrid robot capable of autonomous detection, planning navigation, obstacle avoidance, and charging to accomplish demanding tasks such as grasping, transportation, and assembly.

The integrated application of mobile robots and collaborative robots enables these two types of equipment to work together in a complete system state with stable coordination. Different environmental perception solutions are deployed according to varying scenarios.

The mobile hybrid robot can adapt to various complex environments. In specific scenarios (such as high-speed rail, subway systems, and automated production assembly lines ), it can not only perform mobile material handling tasks but also seamlessly integrate into production process, expand its operational range,and undertake multiple operational tasks.

Crawler-Type Composite Welding Trolley With Optional Laser SLAM And Depth Camera

Equipment parameters:

Category	Standard Edition		High-end Version
Crawler-type Composite Welding Trolley	Crawler trolley	Remote Control Handle	Autonomous Navigation

	Manipulator	Collaborative Robotic Arm Configuration	Collaborative Robotic Arm Configuration
	Welding Power Supply	220V	220V-380V optional
	Precision Navigation	Optional Accessories	Laser SLAM + Depth Camera, ±50mm

	Control System	Handle Remote Controller	北
	Baseplate Communication	Ethernet Port, Power Output (Controlled), Emergency Stop Input	Ethernet Port, Power Output (Controlled), Emergency Stop Input
	Charging Method	Manual Charging	PC,Mobile APP
	Navigation Speed	Forward Speed 1.5m/s, Reverse Speed 1.2m/s	Forward Speed 1.5m/s, Reverse Speed 1.2m/s

	Tool Category	Welding Torch/Gripper/fixture + Customization	Welding Torch/Gripper/fixture + Customization

	Driving Method	Two-Wheel Differential Drive	Two-Wheel Differential Drive
	Battery life		400mm×300mm×300mm
Overall system	Optional	Standard Chassis + 3kg/5kg Collaborative Arm + Gripper + PTZ	Tracked Chassis + 5kg Collaborative Arm + Vision System + Customized Robotic Arm + Customized Peripherals

	Application	Agricultural/Service /Autonomous Navigation Scenarios
