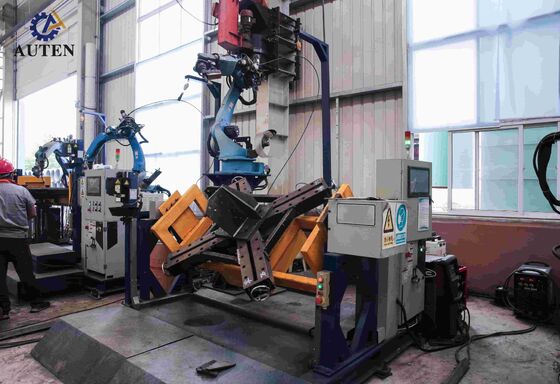

Robot Welding Machine With Dual Positioners And Five Axis Gantry Enabling Transmission Tower Welding

Robot Welding Machine With Dual Positioners And Five Axis Gantry Enabling Transmission Tower Welding

Product Introduction:

This equipment is specifically developed for the automated welding of transmission tower base components. In addition to reinforcement plate welding, the system is capable of completing the 11 major weld seams of the tower base structure, dedicated root-pass cleaning welds, and sealing cap corner joint welding operations. By integrating intelligent robotic control technology with advanced welding processes, the equipment achieves superior welding precision, uniform weld quality, and enhanced production efficiency, providing an efficient and reliable manufacturing solution for modern transmission tower fabrication.

Main Parameters:

Product Features:

1. Repeatability: The system provides a positioning repeatability of no less than ±0.05 mm.

2. Path Accuracy: The trajectory accuracy remains within ±0.1 mm.

3. Structural Design: The arc welding robot features a highly stable and robust mechanical structure, designed for prolonged, continuous industrial operation.

4. Working Envelope: Supports workpieces up to 1500 mm in dimension, fulfilling the complete spectrum of welding requirements.

5. Operating Method: Workpieces are mounted on a positioner fixture, while the welding head is installed on a dedicated robotic platform. During operation, the robot and positioner function in coordinated synchronization. By employing robotic vision scanning combined with a laser seam-tracking system, welding paths are generated automatically without programming. This configuration enables the welding of complex and irregular components with ease of operation and minimal operator training.

1. Welding System

The equipment is fitted with a high-performance AOTAI welding power source that supports multiple welding processes, including MIG, MAG, and TIG, to accommodate transverse, longitudinal, and vertical welding applications. Welding current and voltage can be adjusted continuously according to workpiece geometry, material specifications, and thickness, ensuring stable arc characteristics, a consistent weld profile, and dependable welding quality.

The system incorporates a premium Apollo welding torch and a comprehensive range of auxiliary welding components, including an automatic wire-feeding mechanism, contact tips, and associated accessories. This integrated configuration promotes smooth wire feeding, stable welding performance, and reliable operation during long production cycles.

2. Intelligent Recognition and Automatic Program Generation

The system integrates intelligent identification and data-processing technologies to automatically extract essential welding information from engineering drawings or digital manufacturing data, including weld locations, seam types, and joint configurations. The identified information is then converted into executable robotic welding programs, typically within approximately 30 seconds. Programs can be transmitted via Ethernet, USB, and other standard data-transfer interfaces, streamlining production preparation and improving workflow efficiency.

3. Control System

① Digital Control Platform:

The equipment employs an advanced digital control architecture for accurate robotic trajectory control and flexible adjustment of welding parameters. This ensures stable, repeatable, and consistent welding results during continuous production.

② Programming Method:

The system supports vision-guided programming through an intuitive human–machine interface (HMI), allowing operators to generate welding programs efficiently while maintaining precise control over complex trajectories, joint configurations, and process parameters.

③ Communication Interfaces:

Multiple industrial communication interfaces enable seamless connectivity with automated production lines, peripheral equipment, and factory-level control systems. This facilitates integration into intelligent manufacturing environments and supports coordinated production management.

4. Positioner Support Structure

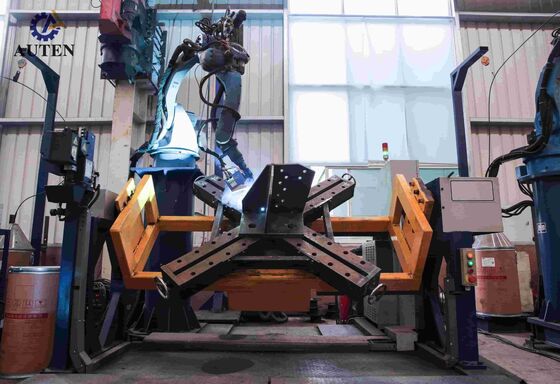

The robotic positioner features a high-strength, high-rigidity support structure designed to withstand dynamic loads generated by robotic motion and the positioning of heavy workpieces during welding. Its robust construction provides stable positioning, reliable welding accuracy, and long-term operational performance. The optimized mounting configuration simplifies installation and commissioning, facilitates routine maintenance and servicing, and maximizes the robot's effective working envelope and overall productivity.

5. Safety Protection System

The complete system is designed to meet an IP54 protection rating or higher, providing protection against dust ingress and water splashes under applicable test conditions. This protection helps maintain operational reliability and extends equipment service life in demanding industrial manufacturing environments.

6. Robot Programming and Data Import

The robotic welding system supports multiple programming approaches and data-input methods, including direct CAD file import, machine vision-assisted scanning, and parameter-based programming without conventional manual teach-in. Compatibility with various engineering drawing and program formats provides greater operational flexibility, simplifies program preparation, and accelerates the setup of automated welding operations.

7. Robotic Welding System

The equipment incorporates a six-axis industrial welding robot with an extensive range of motion and multi-directional flexibility, enabling the welding torch to access complex workpieces from various angles. This configuration supports multiple welding positions and intricate joint geometries, including three-dimensional curved weld seams. With high positioning accuracy, repeatability, and adaptability, the robotic welding system delivers consistent performance and improved production efficiency for demanding transmission tower manufacturing applications.

This automated robotic welding system is specifically developed for manufacturing transmission tower base assemblies, where it performs a crucial role in ensuring the structural integrity and reliability of tower foundations. In addition to welding reinforcement plates, the equipment automatically completes all 11 primary structural weld seams, the dedicated root-cleaning weld, and the welding of sealing caps and corner joints. Throughout the welding cycle, the system maintains precise workpiece positioning, consistent weld penetration, and uniform weld bead formation across every critical connection. By automating these essential welding operations, the equipment significantly improves welding consistency, production efficiency, and structural strength, making it an ideal solution for high-quality transmission tower base fabrication and large-scale industrial production.
